DC 60-75 Ton Refrigeration Water Chiller
Construction Features Configuration
Environmentally Friendly R-404ALow Ambient Fan Cycling
Top Discharge Condenser Exhaust Low Ambient Flooded Condenser Includes Receiver with Isolation Valves (Optional)
Control Panel with Hinged Door Brazed Plate or Shell and Tube Evaporator
Insulated Copper Piping Condenser Ambient Fan Cycle Control
G-90 Galvanized Cabinetl Suction Line Filter-Dryer
Power Terminal Block with Single Point Electrical Connection Liquid Line Filter–Drier
Spring Mounted Compressors Thermal Expansion Valve
Service Valves Digital Control Thermostat
Suction and Liquid Vibration Eliminators
Refrigerant & Electrical Safety Controls Dual or Single Copeland Discus Compressors
Low Water Flow Safety Shut-Off Cylinder Unloading (Optional)
Short Cycling Time Delay Compressor Staging For Dual Compressors (Optional)
Low Refrigerant Pressure Control Pump Down Solenoid
High Refrigerant Pressure Controlwith Manual Re-Set
Freeze-Stat with Manual Re-Set Testing
Temperature Sensor Failure Protection UL/CUL Listed All Models
Compressor Crankcase Heater Leak Detection, Dielectric and Run Test
Control Circuit Fuses
Sentronic Oil Safety Switch
Water Inline Strainer

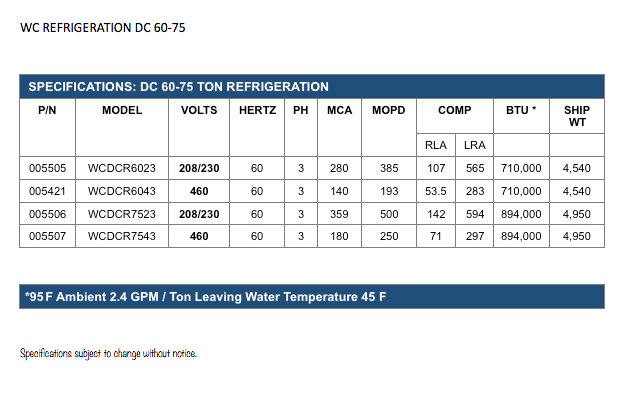

Electrical Specifications

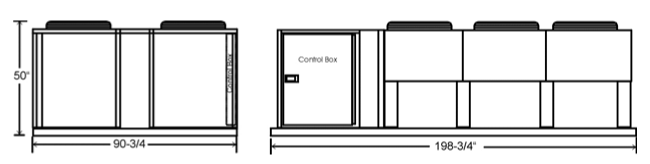

Dimensions

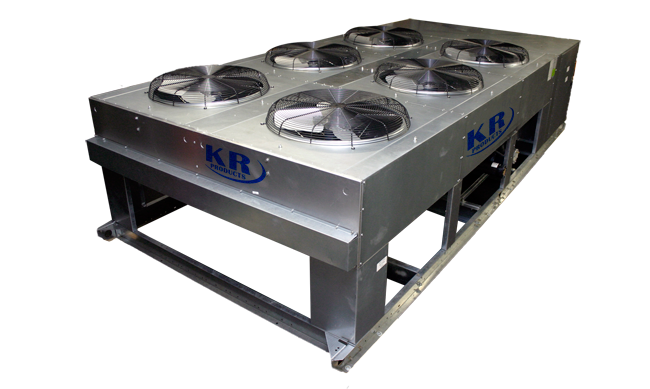

DC 60-75 Ton Refrigeration Water Chiller
For high-capacity cooling needs, the DC 60-75 Ton Refrigeration Water Chiller from KR Products Inc. stands out as your premier source. This efficient and robust water chiller is designed to meet the demanding requirements of various industrial applications, ensuring reliable and effective refrigeration.
Superior Construction Features
The DC 60-75 Ton Refrigeration Water Chiller is built with an environmentally friendly R-404A refrigerant, while delivering exceptional performance. Its construction includes a top discharge condenser exhaust and a control panel with a hinged door for seamless access. When it comes to water chiller refrigeration, DC 60-75 units are highly durable, enhanced by insulated copper piping and a G-90 galvanized cabinet, while the power terminal block with a single point electrical connection ensures ease of installation. Spring-mounted compressors and service valves further add to the unit’s robustness and reliability.
Advanced Safety Controls
Safety is a key feature of the DC 60-75 Ton Refrigeration Water Chiller. It comes equipped with short cycling time delay, low water flow safety shut-off, and both low and high refrigerant pressure controls with manual resets. Additional safety features of the DC 60-75 ton include temperature sensor failure protection, freeze-stat with a manual reset, and a compressor crankcase heater. Sentrocic oil safety switch, control circuit fuses, and a water inline strainer provide extra layers of protection to ensure safe and efficient operation.
Flexible Configuration and Testing
The DC 60-75 Ton offers a versatile configuration that includes a low ambient flooded condenser and ambient fan cycling. You can choose between a shell and tube evaporator and a blazed plate. The unit also features condenser a suction line filter-dryer, ambient fan cycle control, thermal expansion valve, and liquid line filter-dryer.
The digital control thermostat and suction and liquid vibration eliminators ensure efficient operation and precise control. Dual or single Copeland Discus compressors with optional cylinder unloading along with compressor staging for dual compressors enhance its adaptability. Each unit is UL/CUL listed and undergoes rigorous dielectric, leak detection, and run tests to ensure top-notch performance.
Secure the DC 60-75 Ton Refrigeration Water Chiller
The DC 60-75 Ton Refrigeration Water Chiller we offer delivers superior performance, safety, and reliability for all of your cooling needs. For more information, call our team today at 314.353.1712 or email us at sales@krproductsinc.com.
